JC950 CUMMlNS Diesel Fully Hydraulic DTH Rock Blasting Drilling Rig for Geological and Mineral Exploration

Name: JC950 CUMMlNS Diesel Fully Hydraulic DTH Rock Blasting Drilling Rig for Geological and Mineral Exploration
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JC950
Price: 17,506.00 USD
Availability: InStock

브랜드 이름:	JCDRILL
모델 번호:	JC950
모크:	1세트
가격:	Negotation
지불 조건:	T/T,L/C,웨스턴 유니온
공급 능력:	2000SET

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

ISO,CE

유형:

DTH 암석 발파 드릴링 장비

드릴 깊이:

21m

드릴경:

90-203mm

피드 스트로크:

5860 밀리미터

회전 토크:

3500/4300/5500

애플리케이션:

채광

엔진:

Cumm1ns

무게:

19000kg

엔진 출력:

430KW

크기:

12000×2700×3100mm

포장 세부 사항:

표준 수출 교통 패키지

공급 능력:

2000SET

강조하다:

Cummins diesel DTH rock drilling rig

hydraulic rock blasting drilling rig

mineral exploration drilling rig with warranty

제품 설명

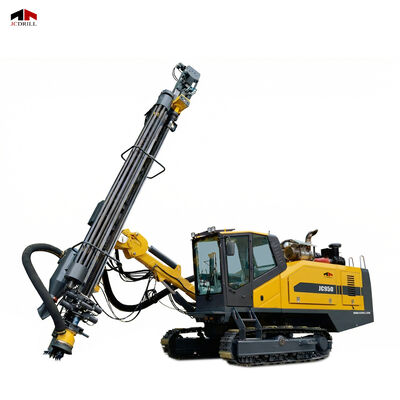

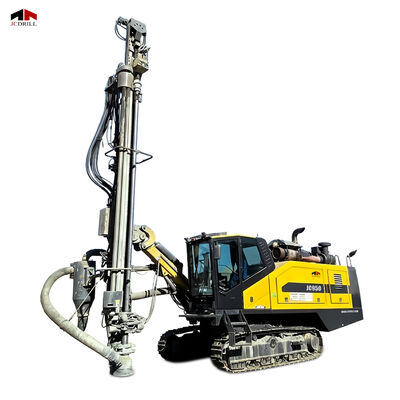

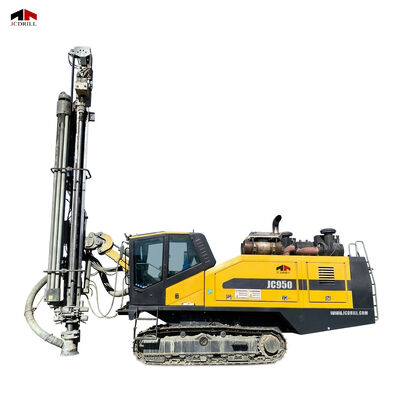

JC950 CUMMINS Diesel Fully Hydraulic DTH Rock Blasting Drilling Rig

The JC950 is a fully hydraulic open-pit drilling rig, equipped with a cabin, an automatic rod handling system, and a dust removal system. It is easy and comfortable to operate, with stable and superior performance, high efficiency, and environmentally friendly features. This equipment covers a drilling range of φ115-152mm, with a working pressure of 2.0 MPa and an air supply of 19 m³/min. It provides reliable support for blast hole drilling in a wide range of open-pit projects, including metallurgy, mining, building materials, railways, hydropower construction, national defense construction, and earthwork.

Technical Specifications

Specification	Unit	JC950
Rock Hardness	F=6-20
Hole Diameter	mm	90-203
Hole Depth	m	21
Drill pipe	mm	89
Rotation Torque	Nm	3500/4300/5500
Rotation Speed (Normal and Fast)	rpm	0-110
Feeding System
Feed stroke	mm	5860
Feeding force	kN	30
Feeding speed	m/min	75
Engine
Manufacturer		CUMMINS
Rated Horse power	Hp	430
Air Compressor
Brand		Atlas Copco
Flow rate	M³/min	25
Pressure	Bar	21
Dust Collector
Motor speed	Rpm	Hydraulic, dry
General
Max. Travel Speed (Slow/Fast)	Km/h	2/3
Gradeability	°	24
Net Weight	kgs	19000
Shipping Dimension (L×W×H)	mm	12000×2700×3100
Ground Clearance	mm	252

Key Features

CUMMINS Engine - Reliable Power Source: JC950 is powered by a CUMMINS diesel engine, delivering stable, reliable power for continuous drilling operations. CUMMINS engines are globally recognized for durability, fuel efficiency and ease of service, ensuring long-term dependable performance.
Excellent Maintenance Performance: The rig is designed with excellent maintenance accessibility, allowing easy inspection, servicing and component replacement. This design significantly reduces downtime and lowers operating and maintenance costs.
Stable & Reliable Drilling Performance: JC950 is engineered as "a rig you can rely on", emphasizing stable operation, consistent output and dependable drilling performance under demanding working conditions.
Robust Structure & Long Service Life: The rig features a solid and durable structure designed for long-term use in exploration projects, ensuring high reliability during extended drilling operations.
Suitable for Continuous Field Operation: With its reliable power system and easy-maintenance design, JC950 is well suited for long-duration field work, especially in projects where equipment reliability is critical.

Applications

Geological exploration
Mineral exploration projects
Engineering geological survey
Exploration drilling with high reliability requirements
Long-duration drilling operations in field environments

Frequently Asked Questions

What engine is used on JC950?

JC950 is equipped with a CUMMINS diesel engine, known for reliable performance, global service support and long service life.

What are the main advantages of JC950?

The main advantages include reliable CUMMINS power, excellent maintenance performance, stable operation, and robust structural design suitable for continuous drilling work.

Is JC950 suitable for long-term field operations?

Yes. JC950 is designed for continuous and long-duration field operations, with a focus on reliability and ease of maintenance.

Is the rig easy to maintain?

Yes. The rig emphasizes maintenance-friendly design, allowing convenient access to key components, reducing downtime and improving overall efficiency.

Product Keywords

JC950 Drilling Rig JC950 CUMMINS Drilling Rig Reliable Drilling Rig Exploration Drilling Equipment CUMMINS diesel engine Stable drilling performance Reliable power system Long service life drilling rig Geological exploration equipment Mineral exploration drilling rig Engineering survey drilling rig Continuous operation drilling rig

For more information, please contact:

JCDRILL

Beijing JCDRILL

Beijing Jincheng Mining Technology Co., Ltd.
