JCD400 Full Hydraulic Wireline Core Drilling Rig Crawler Mounted Diamond Drilling Equipment for Mineral Exploration

Name: JCD400 Full Hydraulic Wireline Core Drilling Rig Crawler Mounted Diamond Drilling Equipment for Mineral Exploration
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JCD400
Price: 122.00 USD
Availability: InStock

브랜드 이름:	JCDRILL
모델 번호:	JCD400
모크:	1세트
가격:	협상 가능
지불 조건:	L/C, T/T, D/A, D/P, 웨스턴 유니온
공급 능력:	달 당 20개 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 산둥

인증:

굴진능력:

HTW/NTW/BTW

드릴 깊이:

180/400/500M

선택적 엔진 브랜드:

유차이, 커민스, 웨이차이, 유차이

정격 속도:

100-1300

토크:

300-2200N.M.

먹이는 치기:

800mm

풀업 용량:

12 톤

진흙 펌프 작업 압력:

4-7

흐름:

30-90L/분

공급 능력:

달 당 20개 세트

강조하다:

full hydraulic wireline core drilling rig

crawler mounted diamond drilling equipment

mineral exploration core drill rig

제품 설명

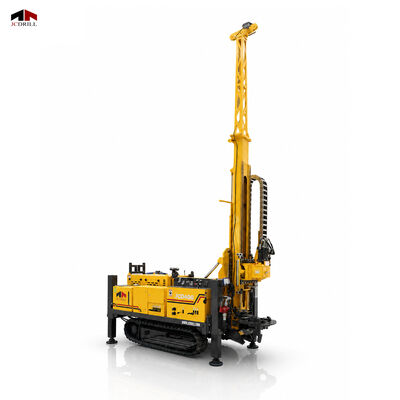

JCD400 Full Hydraulic Wireline Core Drilling Rig

The JCD400 Full Hydraulic Versatile Drilling Rig is a high-performance crawler-mounted drilling machine designed for multi-purpose applications including wireline diamond core drilling, DTH drilling, auger drilling, and water well drilling. It is equipped with an integrated mud pump system and delivers stable and efficient performance in remote and complex geological environments.

Powered by a 78 kW diesel engine, the JCD400 features a full hydraulic control system that ensures smooth operation, precise drilling control, and high efficiency. With a maximum torque of 1300 Nm and drilling capability up to 400 m, it is suitable for medium-depth exploration and construction projects. The rig supports drilling angles from 45° to 90°, making it adaptable to various geological conditions.

Technical Specifications

Specification	Unit	JCD400
Drilling Method		Wireline Diamond Core Drilling
Drill Depth	m	180, 400, 500
Drilling Diameter		HTW-NTW-BTW
Drilling Angle		45-90°
Mobility		Rubber or Steel Crawler, Remote Control
Rotation Torque	Nm	300-2200
Max. Rotation Speed	rpm	100-1300
Pull-up Capacity	Ton	12
Pull-down Capacity	Ton	6
Power	KW	78
Dimensions (L×W×H)	mm	4000×1900×1800
Weight	Kgs	4500

Key Features

Full Hydraulic Control System - All drilling actions including rotation, feed, lifting, and clamping are fully hydraulically driven, ensuring smooth operation, high precision, and low mechanical loss.
Multi-Function Drilling Capability - Supports wireline diamond core drilling, DTH hammer drilling, auger drilling, and water well drilling, providing strong adaptability for different geological projects.
High Power Diesel Engine - Equipped with a 78 kW diesel engine, delivering stable and continuous power output for demanding field operations.
Integrated Mud Pump System - High-pressure mud pump ensures efficient cuttings removal, improving drilling speed and maintaining hole stability in different formations.
Adjustable Drilling Mast (45°-90°) - The mast supports both vertical and inclined drilling, increasing flexibility in complex terrain and engineering requirements.
Crawler Travel System - Heavy-duty crawler chassis ensures stable movement and strong climbing ability, suitable for rough and remote working sites.

Applications

Geological Exploration, Mining Engineering, Construction Engineering, Water Well Drilling, Rock Blasting, Foundation Engineering

Product Keywords

Portable drilling rig, full hydraulic drilling rig, wireline diamond drilling, modular core drilling rig, JCD150, geological exploration equipment, mining core drill, quarry drilling rig, high-efficiency drill rig, remote area drilling

Contact Information

JCDRILL
Beijing JCDRILL
Beijing Jincheng Mining Technology Co., Ltd.
