| 브랜드 이름: | JCDRILL |
| 모델 번호: | TWD200 |
| 모크: | 1개 세트 |
| 가격: | Negotation |
| 지불 조건: | 전신환, L/C (신용장), 인수 인도, D/P (지급도 조건), 웨스턴 유니온, 머니그램 |
| 공급 능력: | 2000set/year |

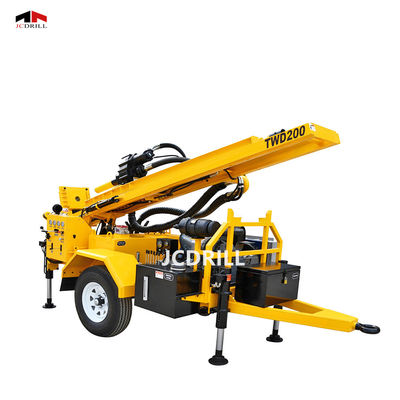

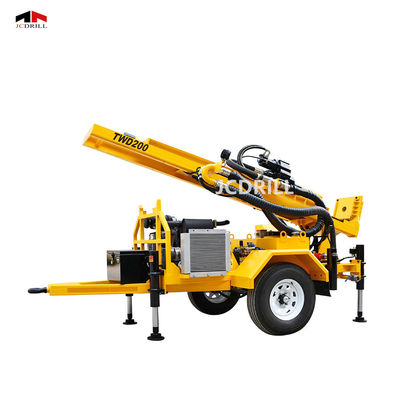

JCDRILL DTH Driling Hydraulic Trailer Type Water Well Drill Rig
Trailer mount portable water well drill rig machine using rotary drilling method for sale is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures.
Trailer mount portable water well drill rig machine using rotary drilling method for sale is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating.Trailer mount portable water well drill rig machine using rotary drilling method for sale can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.
Trailer mount portable water well drill rig machine using rotary drilling method for sale is currently the strongest drilling rig in China.
Specification
| Geology drilled | All kinds |
| Drill depth | 0-200 m |
| Drilling Diameter | 90 - 200mm(DTH.max.6''hammer) |
| Drilling Diameter | 90 - 250mm(Mud Drilling) |
| Rig assembly | 1 complete unit, main engine driven |
| Mobility | 2 wheel tandem road trailer |
| Transportation | Towed by pickup or light truck |
| Drill pipe (diameter x length) | 76/89 mm x 2 m |
| Foam pump | Hydraulic driven(Optional) |
| Weight | 2700 kg |
| Rotation & Feed System | |
| Top head drive by a hydraulic cylinder | |
| Rotation torque | 2600 N-m |
| Speed | 0 - 80 rpm. |
| Head travel | 2.25 meter |
| Pull-up capacity | 8.5Ton |
| Pull-up speed-slow feed | 1.22 meter/min |
| Pull-up speed-rapid feed | 12.26 meter/min |
| Pull-down speed-slow feed | 0-1.88 meter/min |
| Pull-down speed-rapid feed | 0- 16.90 meter/min |
| Feed Stroke | 2350mm |
| Diesel engine | |
| Brnd | Deutz |
| Power | 33KW |
| Model | F3-912 |
| Speed | 2300r/min |
| Cooling type | air |
| Drill Pipe | |
| Drill pipe length | 2.00 meter |
| Drill pipe diameter | 76/89 mm |
| Thread | 2 3/8 REG API Mod |
| Power pack speed | 3000 rpm. |
| Load power pack | max. 47 hp. |
| Foam Pump(Optional) | |
| Flow capacity | 400 liter/min |
| Foam Tank | 50 liter |
| Max. working pressure | 40 bar |
| Hydraulic System | |
| Hydraulic tank capacity | 180 liter |
| Stabilizing Jack | |
| 2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional). | |
| Bore | 150 mm. |
| Stroke | 520 mm |
| Air System | |
| Lubricator of venturi-type for down-the-hole drills. | |
| Max. pressure | 40 bar |
| Oil tank capacity | 8 liter |
| Dimension | |
| Overall length | 4100mm |
| Overall width | 1890mm |
| Overall height | 2100 mm |
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
